Products
MRCW
General Information
Packaging Shapes
:

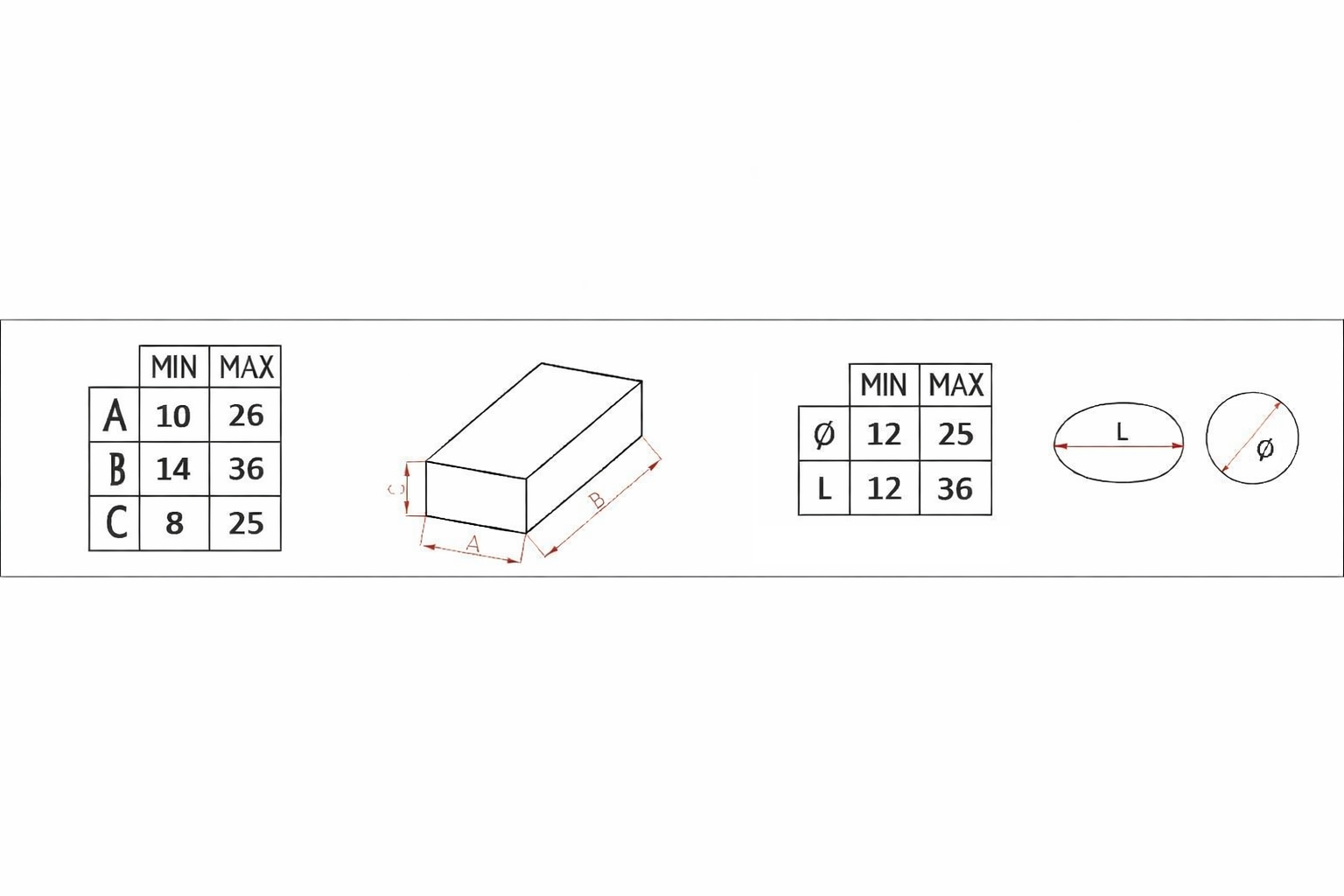

Product Dimensions
:
| MIN (mm) |
MAX (mm) |
|
| Width | 10 | 26 |
| Length | 14 | 36 |
| Height | 8 | 25 |
| Ø Diameter |
12 | 25 |
Wrapping Machine for Jelly, Toffee, Hard Candy, Chocolate Balls and Eggs
Output: 800-900 pcs/min. for hard candy,
700-800 pcs/min. for jelly and toffee,
600 pcs/min. for chocolate balls and eggs (depending on the shape, dimensions of the product and wrapping material.)
• Several products with different dimensions can be wrapped
• Photocell system for paper and products
• Servo motor driven wrapping material feeding
• Electronical parts used on the machine are branded OMRON, Schneider and SICK
• Pneumatic parts used on the machine are branded FESTO
• True-running radial cams with a hardened process for smooth operation and long durability
• Sequenced aligner and round table automatic feeding conveyors are suitable for the machine
• Reject device for defective products
• Complete lubrication system
• Full machine control by HMI with color graphic touch screen
• All errors / warnings are visible on the touch screen
• The machine has a motion controller, and it is supported by 10 individual motor (inverter) groups
• Format or style changeover time is 45 minutes
• All format parts are manufactured exclusively for each product, including the "head turret". Therefore, the machine does not require any further adjustments after the changeover
• CE certification
• Maintenance is easy for all operators
• Easily accessible parts
• Meets all hygienic requirements
• Automatic reel splicer (OPTIONAL)
Output: 800-900 pcs/min. for hard candy,
700-800 pcs/min. for jelly and toffee,
600 pcs/min. for chocolate balls and eggs (depending on the shape, dimensions of the product and wrapping material.)
• Several products with different dimensions can be wrapped
• Photocell system for paper and products
• Servo motor driven wrapping material feeding
• Electronical parts used on the machine are branded OMRON, Schneider and SICK
• Pneumatic parts used on the machine are branded FESTO
• True-running radial cams with a hardened process for smooth operation and long durability
• Sequenced aligner and round table automatic feeding conveyors are suitable for the machine
• Reject device for defective products
• Complete lubrication system
• Full machine control by HMI with color graphic touch screen
• All errors / warnings are visible on the touch screen
• The machine has a motion controller, and it is supported by 10 individual motor (inverter) groups
• Format or style changeover time is 45 minutes
• All format parts are manufactured exclusively for each product, including the "head turret". Therefore, the machine does not require any further adjustments after the changeover
• CE certification
• Maintenance is easy for all operators
• Easily accessible parts
• Meets all hygienic requirements
• Automatic reel splicer (OPTIONAL)
